Backend Configuration
Nexori uses backend-matchmaking.json for backend sync, result reporting, and match admission state reporting.
The file is stored under the plugin data config directory as config/backend-matchmaking.json.
In-Game Configuration

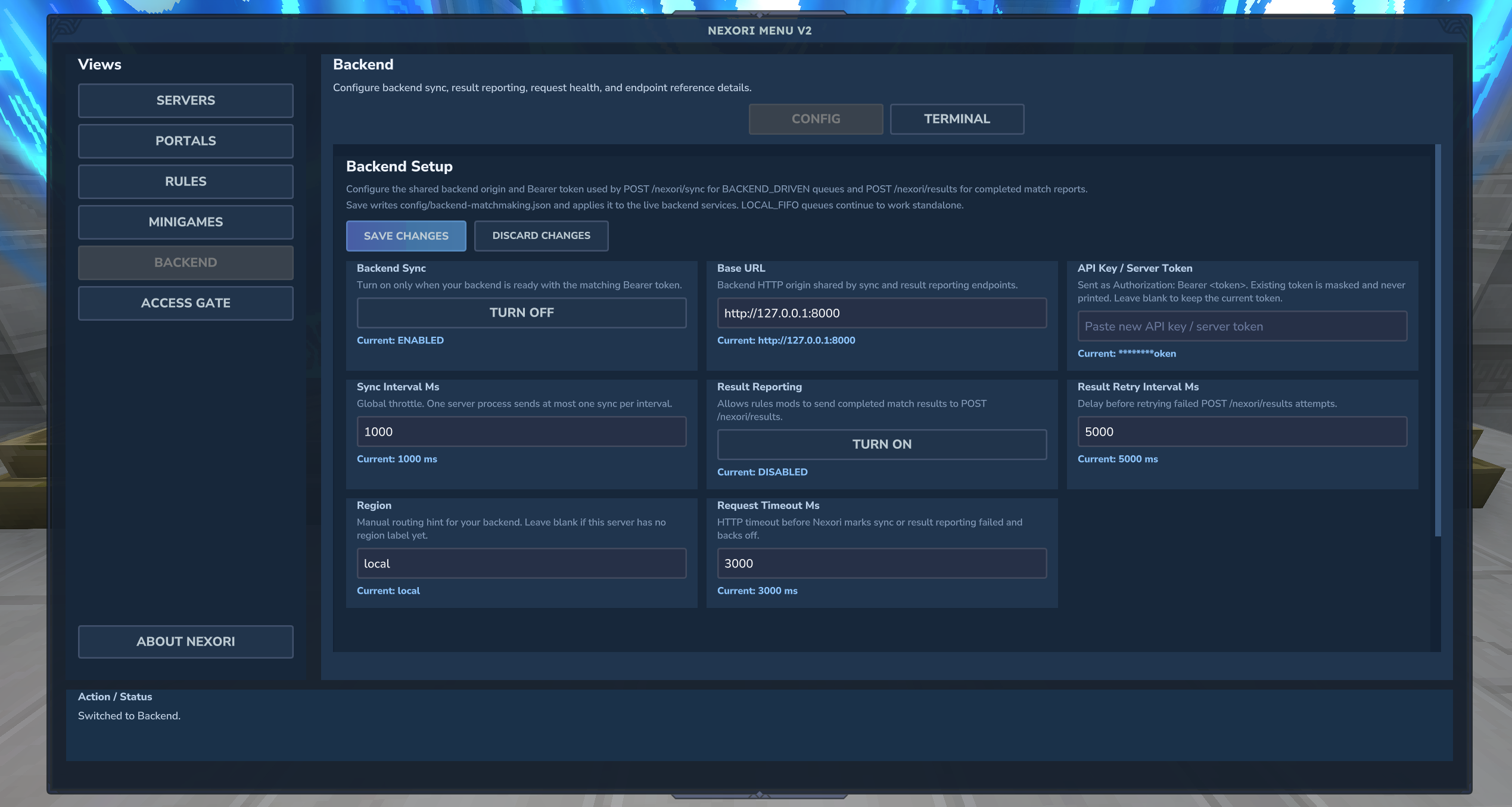

Open Nexori Menu V2, go to Backend, and use the Config tab to edit backend settings. Use the Terminal tab to inspect backend request health/status while testing.
{
"schemaVersion": 1,
"syncEnabled": false,
"baseUrl": "http://127.0.0.1:8000",
"serverToken": "dev-nexori-token",
"syncIntervalMs": 1000,
"region": "local",
"requestTimeoutMs": 3000,
"resultReportingEnabled": false,
"resultRetryIntervalMs": 5000,
"matchStateReportingEnabled": false,
"matchStateDebounceMs": 1000,
"matchStateMaxCoalesceWindowMs": 5000,
"matchStateRetryIntervalMs": 3000,
"matchStateStaleAfterMs": 30000
}Fields
All operational backend fields are exposed in the Backend config UI. schemaVersion is file-managed and normally should not be edited by hand.
| Field | UI exposed? | Purpose | Notes |
|---|---|---|---|
schemaVersion | No, file-managed | Config schema version. | Current value is 1. Nexori writes this when the file is created or normalized. |
syncEnabled | Yes | Enables the lobby/queue server heartbeat to POST /nexori/sync. | Usually enabled on lobby/queue servers for backend-driven matchmaking. Arena/minigame servers usually keep this disabled. |
baseUrl | Yes | Backend HTTP origin shared by backend endpoints. | Nexori derives /nexori/sync, /nexori/results, and /nexori/matches/state from this base URL. |
serverToken | Yes | Bearer token sent in the Authorization header. | Existing tokens are masked in the UI. Leaving the token input blank keeps the current token. |
syncIntervalMs | Yes | Global throttle for POST /nexori/sync. | Default is 1000. One server process sends at most one sync attempt per interval. |
region | Yes | Optional backend grouping/filtering value. | Sent as a routing hint in sync payloads. Use blank if your backend does not need regions. |
requestTimeoutMs | Yes | HTTP timeout for backend requests. | Default is 3000. Applies to backend HTTP calls before Nexori marks the attempt failed/timed out. |
resultReportingEnabled | Yes | Enables arena/minigame server final result reporting to POST /nexori/results. | Can be enabled while syncEnabled=false. |
resultRetryIntervalMs | Yes | Retry delay for failed result reports. | Default is 5000. Controls retry timing for pending /nexori/results reports. |
matchStateReportingEnabled | Yes | Enables arena/minigame server admission/backfill visibility reporting to POST /nexori/matches/state. | Used when the backend needs to track open running matches for backfill. Can be enabled while syncEnabled=false. |
matchStateDebounceMs | Yes | Debounce delay before sending dirty admission state snapshots. | Default is 1000. Helps merge quick match-state changes before reporting. |
matchStateMaxCoalesceWindowMs | Yes | Maximum time to coalesce admission state changes before forcing a send. | Default is 5000. Nexori normalizes invalid values so the max window is not below the debounce delay. |
matchStateRetryIntervalMs | Yes | Retry delay for failed admission-state reports. | Default is 3000. Controls retry timing for /nexori/matches/state. |
matchStateStaleAfterMs | Yes | Freshness window for admission-state snapshots. | Default is 30000. Backends should ignore stale open-match state after this window. |
Arena/minigame servers can usually keep syncEnabled=false. Enable resultReportingEnabled=true for final result reports, and enable matchStateReportingEnabled=true when backend backfill needs visibility into matches running on that server.
UI vs File
Use the UI for normal editing. It writes config/backend-matchmaking.json and applies the updated config to the live backend services.
Edit the file directly only when you need to automate server setup or change schemaVersion during a future migration. Older or unknown keys are ignored when the config is loaded and are not written back when Nexori saves the normalized file.
Endpoint Pages
- Backend Overview explains when to enable each endpoint.
- Sync Endpoint documents
POST /nexori/sync. - Results Endpoint documents
POST /nexori/results. - Match Admission State Endpoint documents
POST /nexori/matches/state.
For third-party rules mods, the mod completes the match through the public Minigame API. If the minigame has custom stats, it should collect them during gameplay and pass them as customData when calling submitFinalMatchResult(...).
